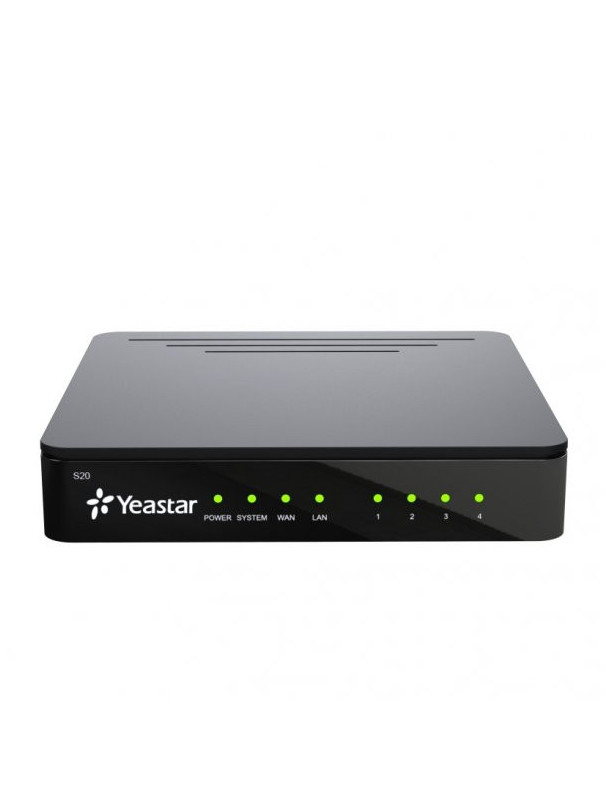

Yeastar S20, IP PBX, up to 4 ports, 20 users, 10 calls

New IP PBX switchbook for 20 users/flags and 10 concurrent calls vc. automatic call recording, the plastic version included in the price is also a full setting of the control panel

Max. 20 users (flap) and 10 concurrent calls

Possibility of extension with modules S2 / O2 / SO / BRI or GSM

Including automatic call recording

New, more powerful hardware

Redesigning a web interface

Services such as voice navigation (IVR), ringtones, queues, conferences, and more

The Yeastar PBX S20 keyboard is the basic model of the new PB type S series.

Supported modules are S2 (2x analog phone), O2 (2x analog line), BRI (2x ISDN2), SO module (1 year phone, 1x line), GSM (1 x GSM channel, SIM800 version module). The control panel has 2 module positions. The GSM module can only be used on 1.

In the control panel, both SIP/IAX cases can be used to connect to VoIP operators, as well as individual SIP accounts commonly used to connect VoIP phones.

The Yeastar series includes a new web-based user interface. Compared to the myPBX family, the design has been redesigned and a number of new features have been added. This includes, for example, the ability to assign detailed permissions to individual users, event centers, or render charts that show the payload of the switchboard.

web_interface

PBX devices are based on the popular open-source Asterisk 13, which gives myPBX greater stability, safety, and a multitude of new features such as multiple flaps.

Control panels support the Asterisk Management Interface (AMI) API, so you can integrate PBX with other systems, such as CRM.

The new features include automatic call recording, which is now available in all series models, without having to purchase a license. Calls can be saved to an SD card or on a network storage (NAS).

In addition to the basic functions of the call (redirection, switching, ...), the control switch also provides a number of advanced functions:

call center (call queues)

multilevel car transport (IVR)

Providing ta phones/gateways

conferences, including web-

ringtone groups

voice mail, including the ability to send a message by e-mail

LDAP server - global directory

Event Center - Notification of the selected event

Firewall (including automatic IP address blocking)

detailed description (CDR)

E-mail-to-SMS /SMS-e-mail (after inserting gsm module)

Fax-to-E-mail

Bulk import/export flap from/to CSV file

It is also possible to extend the codec G.729. The G.729A codec license is part of the S Series switchboards and may not be purchased.

GSM voice processing is currently being optimized on S series exchanges.
